Expanded Metal - Quote

$0.00

sold out

Expanded Metal is a lightweight, high-strength material formed from a single sheet, providing durability, airflow, and slip resistance without added welds or joints. Its open pattern makes it ideal for applications where visibility, drainage, and traction are important.

Typical applications include:

Walkways, platforms, and safety grating
Trailer floors, ramps, and steps
Guards, screens, and enclosures
Fencing, partitions, and security barriers
Decorative panels and architectural features
General shop and custom fabrication

Because expanded metal is often application-specific, most orders are handled on a quote basis to ensure the correct strand size, opening, load capacity, and finish for your job. Use Get a Quote, email us at metal@tvbwelding.com, or call (669) 888-3008 for current pricing and availability.

Expanded Metal is a lightweight, high-strength material formed from a single sheet, providing durability, airflow, and slip resistance without added welds or joints. Its open pattern makes it ideal for applications where visibility, drainage, and traction are important.

Typical applications include:

Walkways, platforms, and safety grating
Trailer floors, ramps, and steps
Guards, screens, and enclosures
Fencing, partitions, and security barriers
Decorative panels and architectural features
General shop and custom fabrication

Because expanded metal is often application-specific, most orders are handled on a quote basis to ensure the correct strand size, opening, load capacity, and finish for your job. Use Get a Quote, email us at metal@tvbwelding.com, or call (669) 888-3008 for current pricing and availability.

Expanded Metal – Weight & Availability

Type	Style	Opening	Sheet Size	Nominal Wt./Sheet	Availability

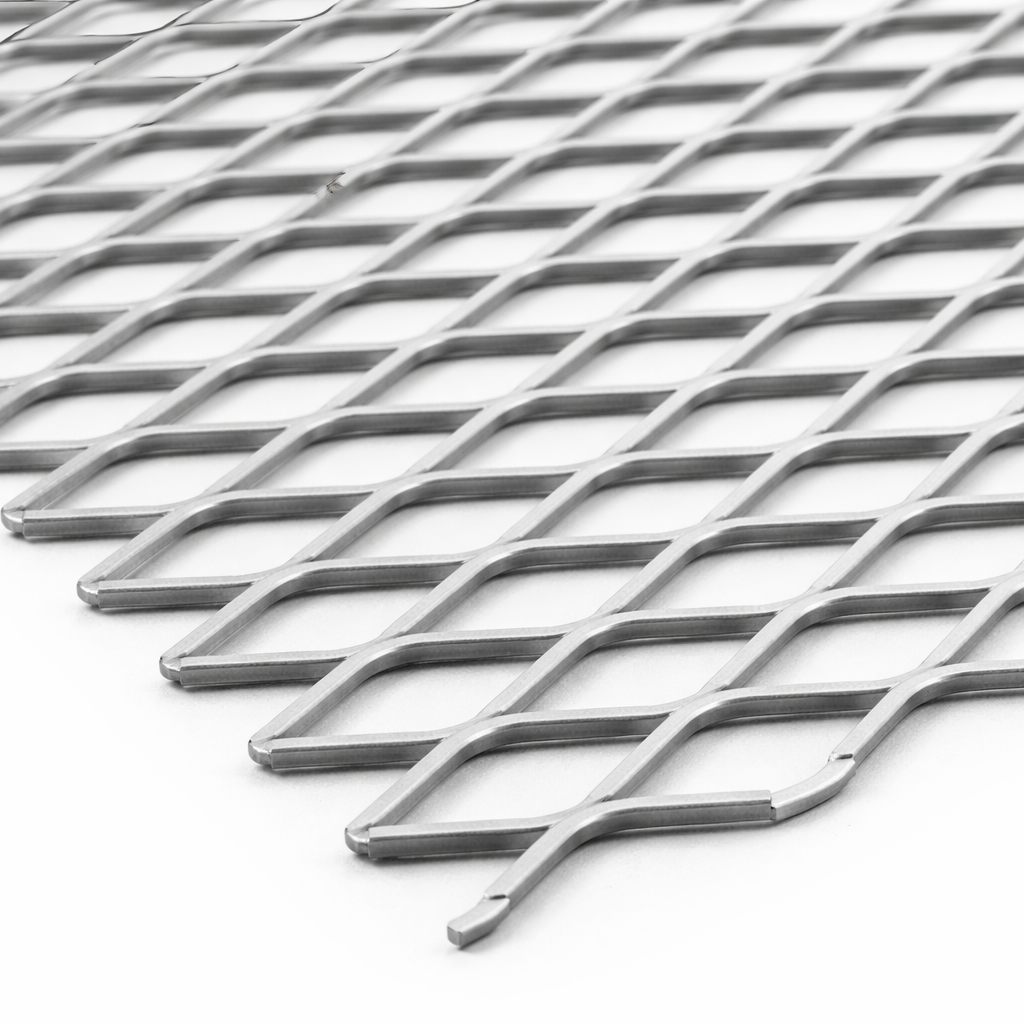

Expanded Metal	Flat	#13 – 1/2"	48" x 96"	~26 lbs	IN STOCK

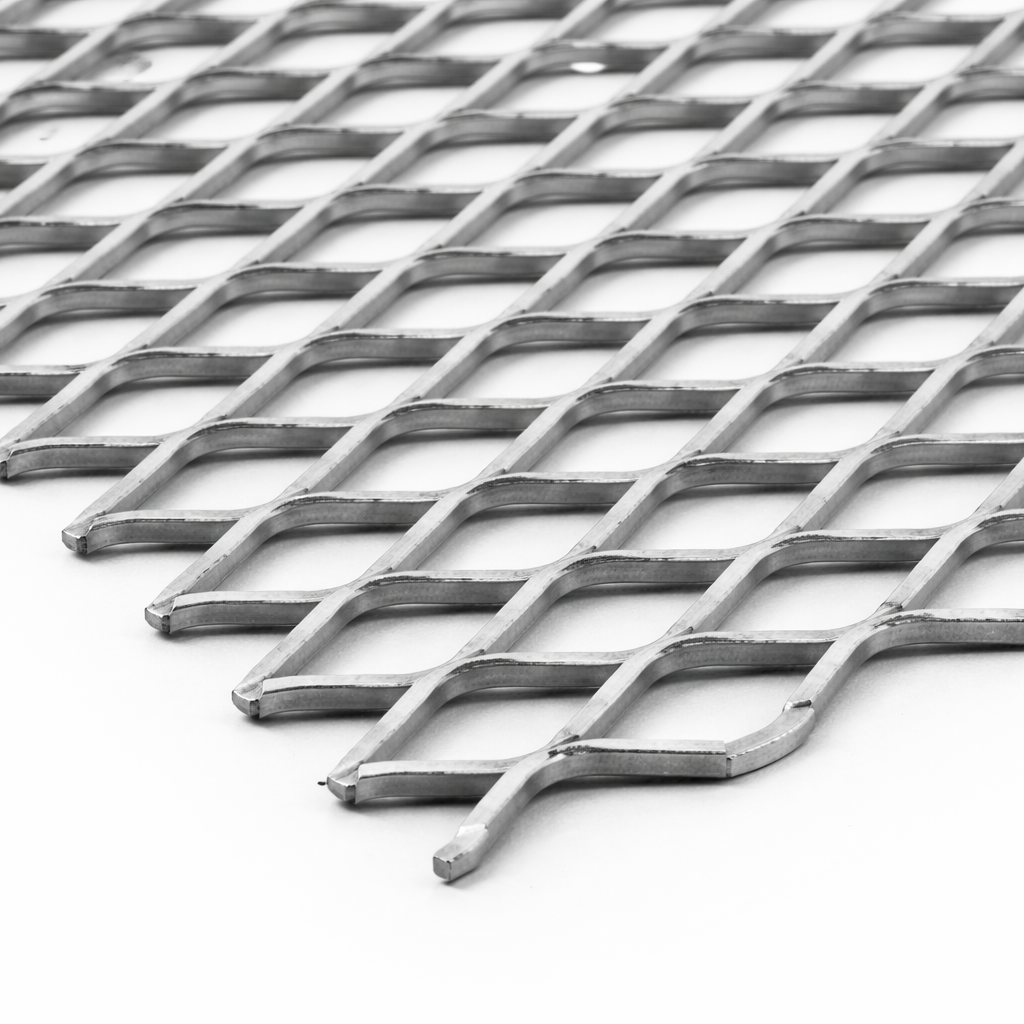

Expanded Metal	Raised	#13 – 1/2"	48" x 96"	~28 lbs	CALL FOR QUOTE
Expanded Metal	Flat	#18 – 1/2"	48" x 96"	~12 lbs	CALL FOR QUOTE
Expanded Metal	Raised	#18 – 1/2"	48" x 96"	~13 lbs	CALL FOR QUOTE
Expanded Metal	Flat	#16 – 1/2"	48" x 96"	~18 lbs	CALL FOR QUOTE
Expanded Metal	Raised	#16 – 1/2"	48" x 96"	~20 lbs	CALL FOR QUOTE
Expanded Metal	Flat	#14 – 3/4"	48" x 96"	~24 lbs	CALL FOR QUOTE
Expanded Metal	Raised	#14 – 3/4"	48" x 96"	~26 lbs	CALL FOR QUOTE
Expanded Metal	Flat	#13 – 3/4"	48" x 96"	~28 lbs	CALL FOR QUOTE
Expanded Metal	Raised	#13 – 3/4"	48" x 96"	~30 lbs	CALL FOR QUOTE

#13 – 1/2" flat expanded metal is stocked locally.
Additional styles, gauges, and openings are available by quote.
